Entrance Design
As with all most security systems, the engineering preparations and design of the entrance can make or break the success of the installation.
We offer free of charge consultancy with regards to the engineering preparations and design of the entrance. Because we have the same objective as you and your client: a succesful, well working installation.
Designing the entrance of your location? Contact us for free consultation!

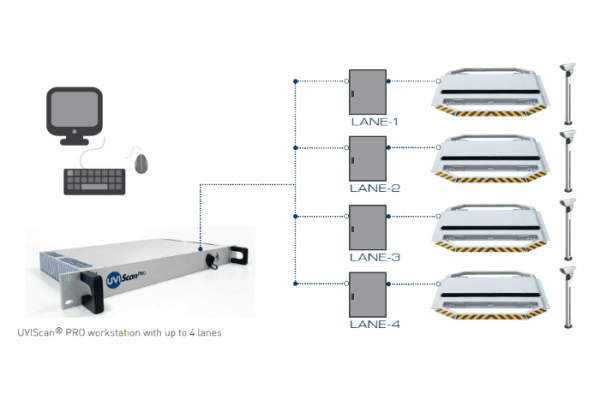

Multi Lane Design
Our advanced UVIScan PRO technology includes an industrial Processing Unit with pre-installed LINUX OS.
UP TO 4 LANES can be connected to 1 single Processing Unit with 1 single Monitor. This solution takes much less space in the guard room.
Up TO 4 LANES, there is no need for a Central Server and costs can be reduced substantially.
Heavy Duty Design
The UVIScan Heavy Duty Housing has been specially designed for extreme conditions. The cover has a very strong sandwich construction which can withstand minimal 50.000N loading. Can be installed by hand, there is no need for a crane for installation purposes. Or to service the system.
Tested by TUV in Germany!
Installation Options
The UVIScan PRO system can be installed in various ways:
1) With guiding rails (as per attached example). This is our standard option. The guiding rails with yellow / black reflective striping will guide the vehicles correct over the scanner, with the wheels on either side of the scanner.
2) Flush mounted with the road surface. The scanner is fully integrated within the road, for instance to allow snow movers.
3) Surface mounted with heavy duty ramp. Ideal if it is not possible to make an excavation, for instance in a parking garage.
1) In Ground with guiding rails
2) Flush Mounted
3) Surface Mounted
Example of a UVIScan PRO Surface Mounted which includes a heavy duty ramp. With solid rubber mats, specially designed for heavy traffic. Installation manual available on request.
